A heater for the Yamaha Wolverine RMAX4 1000 Compact, 2020–2025
This Ice Crusher dual-fan heater kit is built specifically for the Yamaha Wolverine RMAX4 1000 Compact — not a universal heater adapted to fit. The dual-fan heater core moves twice the air of our single-fan kits: 18,000 BTU and 320 CFM through 6 adjustable vents — two defrost vents, two hand vents and two rear vents for the back-seat passengers. The heater unit mounts under the driver seat. Because it runs on engine coolant, it makes real heat without draining your battery; the dual fans draw just 2–3 amps.
Fits
- 2020–2025 Yamaha Wolverine RMAX4 1000 Compact only: LE, XT-R and R-Spec trims
By model year:
- 2025 Wolverine RMAX-4 Compact (LE | XT-R | R-SPEC)
- 2024 Wolverine RMAX-4 Compact (LE | XT-R | R-SPEC)
- 2023 Wolverine RMAX-4 Compact (LE | XT-R | R-SPEC)
- 2022 Wolverine RMAX-4 Compact (LE | XT-R | R-SPEC)
- 2021 Wolverine RMAX-4 Compact (LE | XT-R | R-SPEC)
- 2020 Wolverine RMAX-4 Compact (LE | XT-R | R-SPEC)

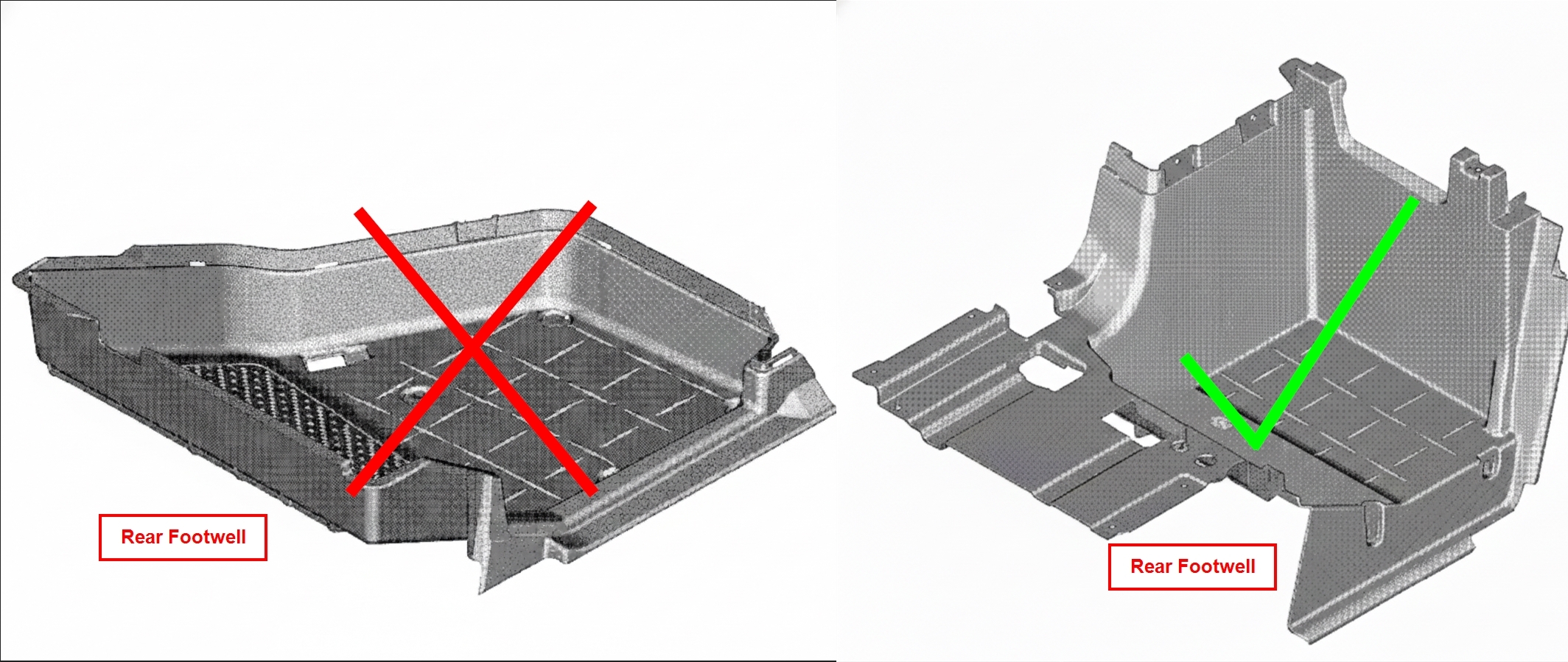

Not for: The standard Wolverine RMAX4 1000 or the two-seat RMAX2. This kit is built for the RMAX4 1000 Compact only. Quick check: look at the rear footwell. If its sidewalls are tall, like the photo below, this kit fits; if they are short, it will not. Not sure? Call 888-964-0135. Looking for the single-fan RMAX kit? See it here.
Specs
| Fits | 2020–2025 Wolverine RMAX4 1000 Compact only |
|---|---|
| Heat output | 18,000 BTU |
| Airflow | 320 CFM |
| Vents | 6 adjustable: 2 defrost, 2 hand, 2 rear for back-seat riders |
| Windshield defrost | Yes |
| Fan | Dual; draws 2–3 A |
| Heater size | 12 × 7.5 × 4.5 in |
| Mounts | Under the driver seat |
| Also included | Custom thermostat bypass housing |
| Install time | 4–8 hours |
| Warranty | 3 years, whole kit |
What’s in the box
- Heater unit with fan
- 6 adjustable vents: 2 defrost, 2 hand and 2 rear
- Coolant hose
- Fittings and mounting hardware, plus a custom thermostat bypass housing
- The specialty tools the install needs
- Picture-rich, step-by-step instructions written for the average do-it-yourselfer
Installation
The heater mounts under the driver seat, and the rear vents warm the back-seat riders. You tap into the engine coolant and route the hose to the heater; the instructions show every step with pictures. Basic hand tools do the job.
Options

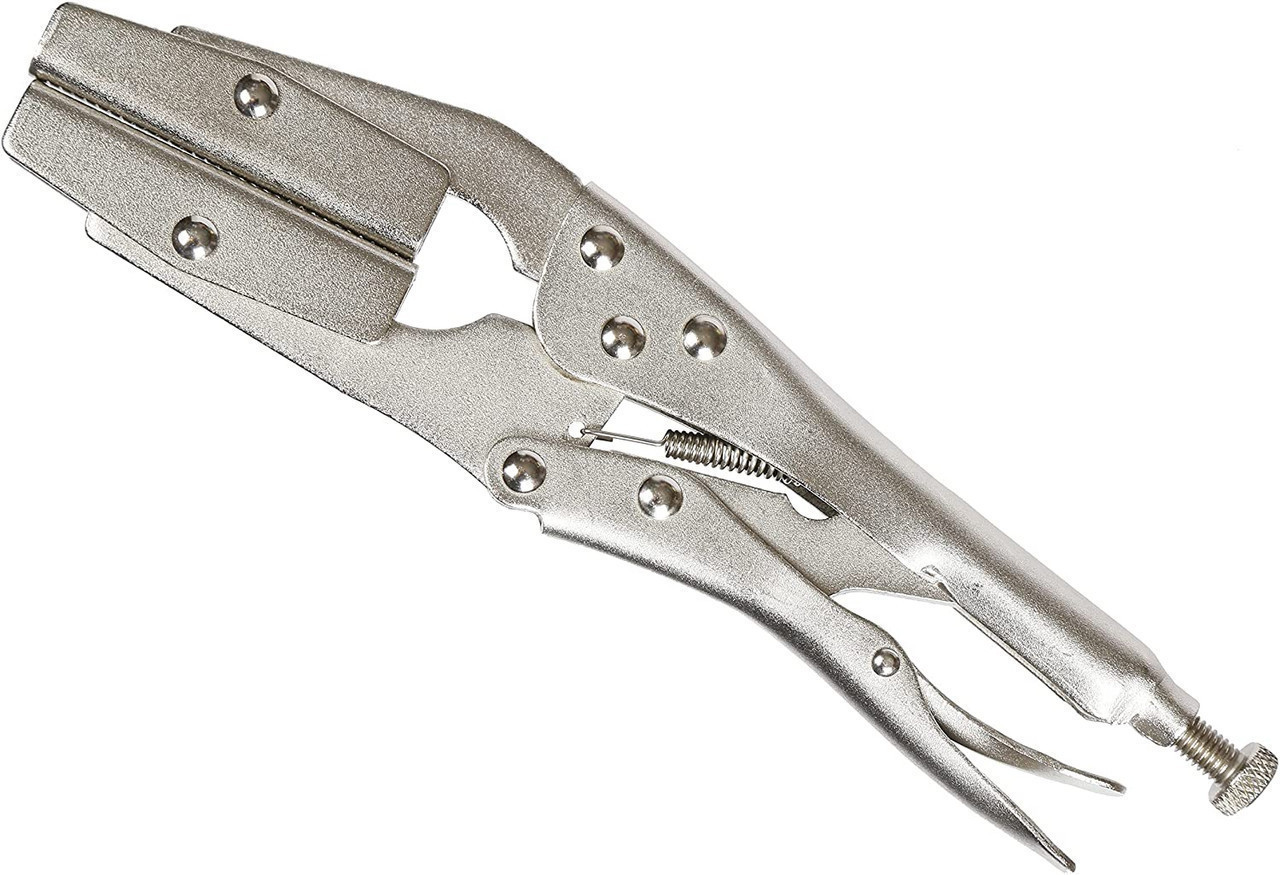

Hose clamp tools (+$24.99): A pair of clamp-off pliers that seal hoses up to 2 inches, so the coolant tie-in stays clean. Handy on radiator hoses too.
Questions we hear
Will it fit my RMAX4?
Only the RMAX4 1000 Compact (LE, XT-R and R-Spec), 2020–2025. Look at the rear footwell: tall sidewalls mean this kit fits; short sidewalls mean it won’t. Not sure? Call 888-964-0135.
What does the thermostat bypass housing do?
It’s a custom housing that sits behind the OEM thermostat so hot coolant reaches the heater faster and more consistently. It’s included with this kit.
Will it drain my battery?
No. The heat comes from your engine’s coolant, not the battery. The dual fans draw just 2–3 amps of 12-volt power, similar to an OEM blower.
How long does the install take?
Plan on 4–8 hours depending on experience. Experienced do-it-yourselfers land at the low end; first-timers should set aside a full day and follow the picture-rich instructions step by step.
Why buy an Ice Crusher heater
We’re not the cheapest UTV heater. We’re the one designed, supported and shipped by the people who answer the phone. Every kit is built for a specific machine, comes complete, and is backed by real people who know it inside and out. And we keep improving our kits, even when it means retiring our own older designs.
Warranty, support and shipping
3-year warranty on the whole kit, electrical included. If something goes wrong, tell us the problem and we make it right. Tech support is unlimited and free for as long as you own the heater: call 888-964-0135 and a real person in Minnesota answers.
Free shipping in the lower 48. Order by noon CT, Monday through Friday, and it ships the same day. Canada: $30–$50 per heater freight depending on province; duties, taxes and brokerage are extra.
More help: Heater FAQ · Install videos on YouTube
